Description

PP/PET Woven fabric compound geomembrane is made with woven geotextile compound on the surface of HDPE geomembrane by special process technology, It remains the mechanical properties of base woven fabric and uniformity of geomembrane which improve the impermeability. it is multi-function anti-leakage liner with high strength, reinforcement, separation, drainage, protection and slip resistance.

Types and Specification

1) One layer geotextile and one layer geomembrane
( Weight of geotextile : 100g/㎡-1000g/㎡ ; Thickness of geomembrane :0.1mm-1.5mm)
2) Two layers geotextile and one layer geomembrane
(Weight of geotextile: 80g/㎡-600g/㎡ ; Thickness of geomembrane :0.2mm-1.5mm)

Features
- Excellent physical and mechanical performance, high tear and puncture resistance
- High anti-aging and UV resistance, anti-acid & alkali, long service life
- Excellent environmental stress cracking resistance property
- Good waterproof, seepage and humidity resistance
- High tensile strength and elongation
- Excellent low & high temperature flexibility

Uses
* Used in landfill, river embankment, lake dam, sewage dam and reservoir area, channels etc.
* Anti-seepage & lining for subway, basement and tunnel.
* Saline seepage-proofing for roadbed and other foundation.

* Roof seepage-proofing.

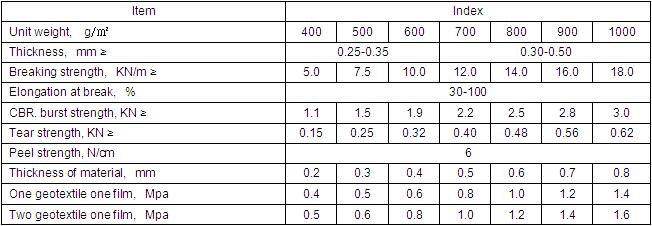

Physical Property
