     Mosaic Style Fiberglass Reinforced Asphalt Shingle

      Yosaite Code: BM051C
      Thickness(mm): 2.7 ± 0.1
      Width(mm): 333 ± 3.0   Length(mm): 1000 ± 3.0
      Exposure(mm): 145 ± 2.0


Description
Mosaic style asphalt shingle is made from fiberglass felts coated with a layer of modified bitumen by thermoplastic elastomer (Styrene Butadiene Styrene), finished with colorful mineral granules on the upper surface and polyethylene film on the lower side. The shingle is designed for slope roof gradient 15° to 90°, the fiberglass reinforced shingle is not only waterproof but also aesthetically pleasing. The shingle is economic roofing materials and available in wide variety of colors with excellent weather, fire and wind resistance.

Features
- Excellent waterproofing and durability
- Five different styles and 12 colors to select
- Strong adaptability to deformation and all climates
- Light weight and environmental roofing materials.
- Self-cleaning, heat insulation and noise absorbing
- Fireproof and wind resistance

Uses
Roofs of residential and commercial buildings, such as villas, houses, chambers, hotels, resorts etc.

Specification

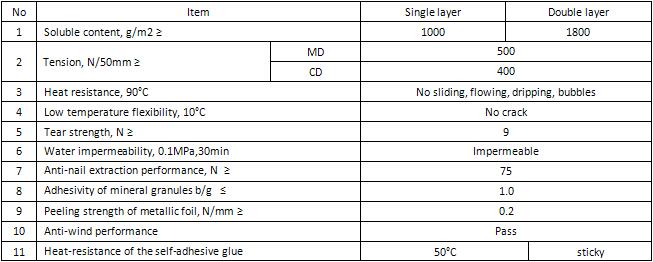

Technical Data: Executive Standard GB/T20474-2006
