     High Strength Geocell with Lock Catch

     Yosaite Code: YGC13
     Cell depth, mm: 50, 75, 100, 150, 200, 250 or customized
     Cell size(W*L), mm: 320x287, 475x508 or customized
     Thickness, mm: 1.0, 1.2, 1.5, 1.8

Description
It is a kind of geocell which is made of plastic circle lock catch and linking pin.

Features

Enlarge the service life, improve the friction coefficient with textured surface

- Consistent and maximum seam strength, suitable for any soils, desert, and other geological conditions
- Excellent resistance to aging, wear, erosion, chemicals, skidding, and deformation
- Effectively supporting and scattering load abilities for roadbed
- Flexible geometry size (such as depth and welding distance) for any projects
- Light weight, foldable and easy to transport, fast installation, lower project cost

Uses

Road base reinforcement in highway, railway, jetty and dam, slope reinforcement, desert, retaining wall, and other soft soil construction.

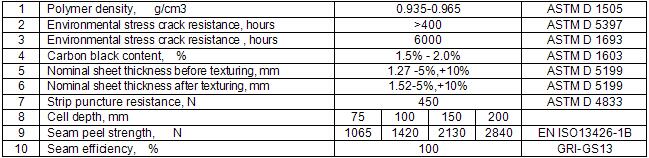

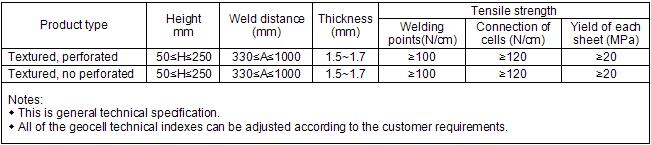

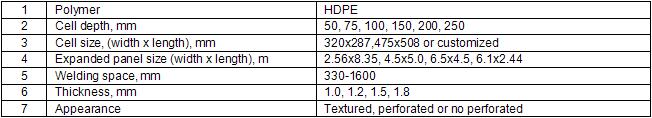

Type and Specification




Textured surface type
