     Fibreglass Reinforced Asphalt Shingle

     Yosaite Code: BM051

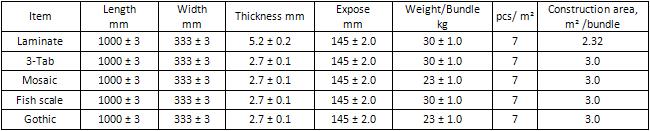

     Thickness(mm): 2.7 ± 0.1 or 5.2 ± 0.2
     Length(mm): 1000 ± 3.0    Width(mm): 333 ± 3.0
     Exposure(mm): 145  ± 2.0





Download

Description

The shingle is made from fiberglass felts coated with a layer of modified bitumen by thermoplastic elastomer(Styrene Butadiene Styrene), finished with colorful mineral granules on the upper surface and polyethylene film on the lower side. The shingle is designed for slope roof gradient 15° to 90°, the fiberglass reinforced shingle is not only waterproof but also aesthetically pleasing. The shingle is economic roofing materials and available in wide variety of colors and styles with excellent weather, fire and wind resistance.

Feature
- Five different styles and 12 colors to select
- For all climates and strong adaptability
- Never fade and instill firmly
- Light weight and environmental roof system
- Dust-proof and self-cleaning
- Heat insulation and absorbing noise
- Fireproof and wind resistance

Uses

Roofs of residential and commercial buildings, such as villas, houses, chambers, hotels, resorts. etc.

Specification

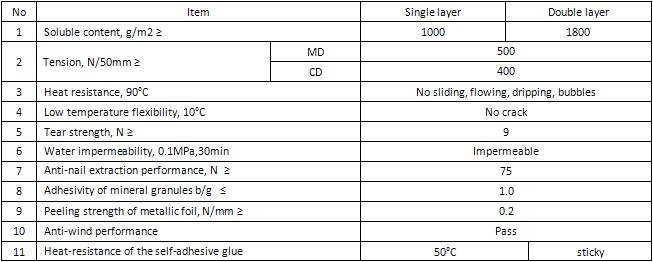

Technical Data: Executive Standard GB/T20474-2006
