HDPE Compound Geomembrane with Nonwoven Geotextile

Yosaite Code: YGH03
Thickness(mm): 0.2 - 4.0
Length(m): 50 - 200
Width(m): 1.0 - 6.0

Description

Compound geomembrane with PP/PET nonwoven is an anti-seepage material, which is compounded with geotextile and compound geomembrane for building construction. It remains the mechanical properties of base fabric and uniformity of film which improve the impermeability. Embossed processing on the film strengthen its friction coefficient, stability and easy for installation. It is mainly used for permeation proof drainage and reinforcement.

Types and Specification

1) One layer geotextile and one layer geomembrane
( Weight of geotextile : 100g/㎡-1000g/㎡ ; Thickness of geomembrane :0.1mm-1.5mm)
2) Two layers geotextile and one layer geomembrane
(Weight of geotextile: 80g/㎡-600g/㎡ ; Thickness of geomembrane :0.2mm-1.5mm)
3) One layer geotextile and two layers membrane
(Weight of geotextile: 100g/㎡-1000g/㎡; Thickness of geomembrane: 0.1mm-0.8mm)

Features

- Excellent physical and mechanical performance, high tear and puncture resistance
- High anti-aging and UV resistance, anti-acid & alkali, long service life
- Excellent environmental stress cracking resistance property
- Good waterproof, seepage and humidity resistance

- High tensile strength and elongation

- Excellent low & high temperature flexibility

Uses
* Used in landfill, river embankment, lake dam, sewage dam and reservoir area, channels etc.
* Anti-seepage & lining for subway, basement and tunnel.

* Saline seepage-proofing for roadbed and other foundation.

* Roof seepage-proofing.

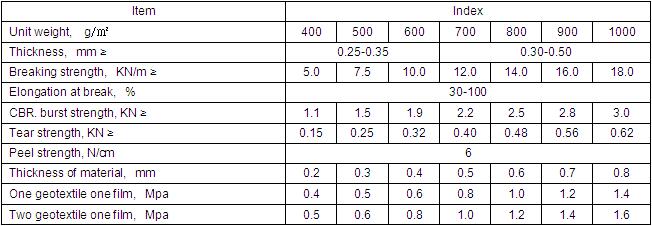

Technical Data
