    HDPE Geocell

    Yosaite Code: YGC11
      Cell depth, mm: 50, 75, 100, 150, 200, 250 or customized
      Cell size(W*L), mm: 320x287, 475x508 or customized

Thickness, mm: 1.0, 1.2, 1.5, 1.8
      Welding space, mm: 330-1600




Description

HDPE geocell is manufactured from strips of high density polyethylene HDPE cross welded by ultrasonic technique to form cells, the strips can be perforated if required to allow the lateral movement of air and water through the structure. It is three dimensional, honeycomb like structures and flexible to fold during the transport and installation at construction sites. The high-strength network of interconnected cells will be filled with soils, aggregates,concrete or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement and stabilizing in the lateral andvertical sides to significantly improve the performance of soils. It is an economic and effective in solving soil stability problems in load support, slope, channel, and shoreline protection, and vegetated retaining wall applications.


Features

Consistent and maximum seam strength, suitable for any soils, desert, and other geological conditions

 Excellent resistance to aging, wear, erosion, chemicals, skidding, and deformation

 Effectively supporting and scattering load abilities for roadbed
 Flexible geometry size (such as depth and welding distance) for any projects
 Light weight, foldable and easy to transport, fast installation, lower project cost


Uses
Reinforcement for railway bed, soft ground roads, retaining walls, driveways, river embankments, landslides preventing.

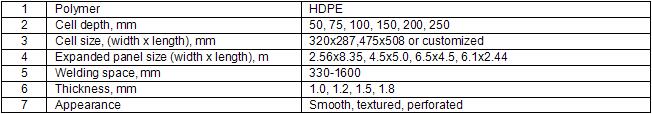

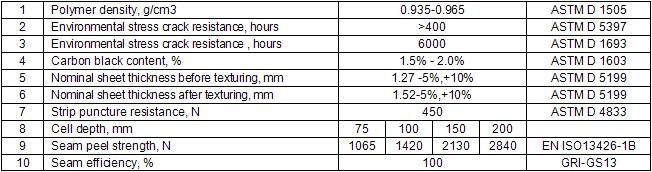

Type and Specification




Textured surface type
