      Fiberglass Geogrid

      Yosaite Code: YGG41
        Roll Length(m): 50-200
        Roll Width(m): 1-6

   Approx. Mesh Size(mm): 12.7*12.7, 25.4*25.4, 40*40

Download

Description
The geogrid is made by using fiberglass yarns to knit into a stable interlocking grid, then coated with modified asphalt. It is a kind of new favorable earthwork base materials to strengthen the road surface and roadbed. The geogrid can effectively improve the strength of subgrade, delaying reflection cracks in the soft soil roadbeds of road. It has excellent tensile strength, thermal stability, anti-corrosion, and low elongation. It can reinforce the road surface and prevent the road surface rut fatigue cracking and the cold-hot expansion crack and the reflection crack.

Features

☆ High vertical and horizontal ensile strength

☆ Low unit extension, high flexibility

☆ Resistance to chemicals, long service life

☆ Weathering resistance from UV degradation

☆ Resist to long term creep, scatter bearing stress, prevent roads from cracks and deformation

Uses

Reinforcing new or old asphalt concrete roads and asphalt surface layer, semi-rigid base layer. Widely used for highway and roads construction.

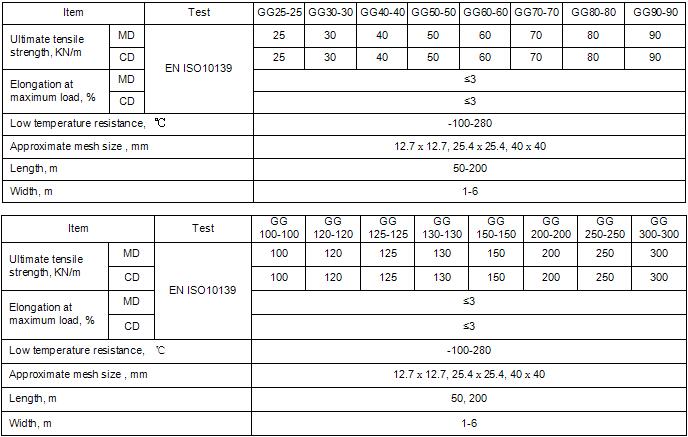

Type and Specification
