    SBS Modified Bitumen Waterproof Membrane for Road-Bridge

    Yosaite Code: BMR021B
    Thickness(mm): 3.5, 4.5        Length(m): 7.5, 10         Width(m): 1.0
    Reinforcement: Polyester felt
    Upper Surface Material: Sands  Lower Surface Material: PE film or sands

Download
Description

The bitumen are modified by thermoplastic elastomer (Styrene Butadiene Styrene), then reinforced with heavy duty polyester felt, finished with sands on the upper surface and polyethylene film or sands on the lower side. The road-bridge application design allows binder course to be applied on the membrane top at a high temperature without the risk of being damaged, shrinking or punctured. It withstands mechanical stress laying of road surfacing and when vehicle traffic in service. The excellent adhesivity and flexibility make it to adapt and move with the decks as they move and flex.


Features
☆  Excellent mechanical strength without breaking or cracking during installation and when in service.
☆  Superior adhesion to concrete underneath and to binder course on top, adaptability to deformation, no slopping or             sliding in service
☆  Resistance to high temperature, no damage during binder course installation
☆  High mechanical strength and puncture resistance to allow for paving equipment to be driven and parked
☆  Resistance to water and salt solutions, and to freeze-thaw cycles


Uses
* Waterproof engineering for highway, airports, railway, bridges, parking lots
* New or renovation concrete reinforced bridges
* Dynamic load engineering projects

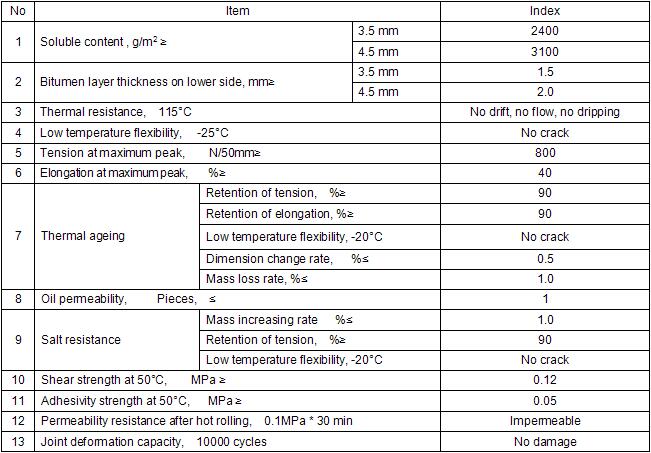

Technical data: Executive Standard JC/T974-2005
