        PVC Waterproof Membrane


Yosaite Code: PM100

        Thickness(mm):  1.2, 1.5, 1.7, 2.0

Length(m): 20          Width(m): 1.0, 2.0, 2.05
        Type: H, L, P, G, GL



Download

Description

The PVC (Polyvinyl Chloride) waterproofing membrane is formulated by using high quality PVC resin as main ingredient and co-extruding with the plasticizer, antioxidant agents, UV light absorbents and other auxiliaries. The high performance membrane is available in variety of colors, reinforced by a high-strength inserted polyester mesh or fabric backing or non-reinforcement, provides a long-lasting durability and waterproof protection.


Features

☆ Long service life, at least 20 years on roof, 50 years underground

☆ High tensile strength, good elongation, dimensions stability and wind loads
☆ High reflectivity, energy efficient; Resistant to UV and oxidation
☆ Strong adaptability to deformation and cracks

☆  High puncture, tear and wind load resistance, low weight

☆ Self-extinguishing and chemical resistance


Uses
* Roofs, underground structures of residential and commercial buildings
* Parking lots, reservoirs, swimming pools, sewage treatment plants
* Highway, airports, railway, bridges, tunnels

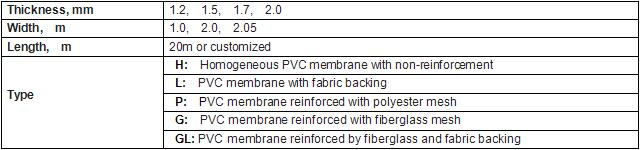

Type and Specification

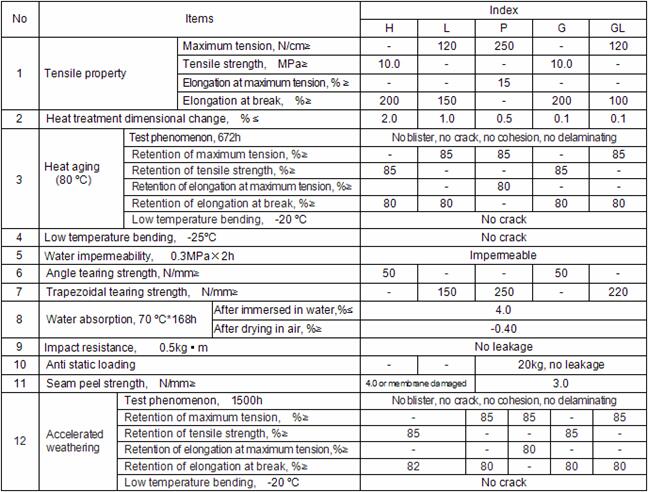

Technical Data: Executive Standard GB12952-2011
